Asset Management Azure SAML 2.0 SSO

Client setup for Single Sign-On (Generic) endpoint in their IdP using the SAML 2.0 protocol for a Frontline application. Steps and roles to establish for the Asset Management application.

  1.  Navigation:
  2. Admin View
  3. District Settings
  4. API and SSO Information

Table of Contents

Configuration Checklist

Frontline Configuration

The following items have been setup/created by Frontline in order to kick off the SSO setup:

  Num Item Value
  1 Relying Party Identifier (Assertion Consumer) URL for Desktop https://HayesURL/TIPIDCore/
  2 Relying Party Identifier (Assertion Consumer) URL for Mobile https://HayesURL/TIPWebITMobile-Login/
  3 Asset Management Endpoint for Desktop https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx
  4 TIPWeb-IT Endpoint for Mobile https://HayesURL/TIPWebITMobile-Logon/SAML/SAMLConsumer

District Configuration

Configuration Document

Download an interactive configuration document which will need to be completed and sent to Frontline in order to finalize your ADFS SAML installation.

Download Configuration Document

Overview to Setup SAML 2.0 SSO

Customers who are asked to setup a Single Sign-On endpoint in their IdP using the SAML 2.0 protocol for a Frontline application are sent an application Identifier (Entity ID), the Reply URL (Assertion Consumer Service), the Metadata XML, the roles to be created in their IdP and the list of attributes, and claims needed by the Frontline Asset Management application.

After setting up the SSO endpoint, customers are asked to the IdP SAML Login URL, the IdP SAML Metadata URL or XML, the SAML Certificate and the certificate thumbprint to Frontline support services. This process is repeated for each Frontline application.

Once the above process is complete, customers will create, setup and send Frontline the test/support account (username/domain and password) in their IdP.

Setup Roles or Groups

Asset Management products must have the following roles (group names) setup in the IdP, and those group names must be sent over as plain text in the "role" attribute/claim the SAML response to the Asset Management application.

Required Group Name Description
TIPWEBIT_ADMINVIEW_ADMIN An administrative level user with admin level permissions.
TIPWEBIT_ ADMINVIEW_USER An administrative user. They have similar rights as the admin user, except a few application maintenance features.
TIPWEBIT_SITEVIEW_ADMIN A site level administrator who only has access to their site data.
TIPWEBIT_SITEVIEW_USER A site user who can only work with their site data.
TIPWEBIT_LOOKUPVIEW_USER A view-only used to lookup tags existing in TIPWeb IT.

Create an Account for Frontline Asset Management

Create an SSO account for Frontline support users in your IdP. Create the following user in your IdP for Frontline Support Staff with a password that does not expire.

  • Username: tipweb_it
  • Password: <password that does not expire>
  • Add to group: TIPWEBIT_ADMINVIEW_ADMIN
  • Add an email address such as tipweb_it@DistrictDomainName

Set Up Endpoints

Setup a new, separate endpoint in your SSO IdP to allow Asset Management to authenticate the user.

Application Identifier (Entity ID)

https://HayesURL/TIPIDCore/

Reply URL (Assertion Consumer Service URL)

https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx

Metadata XML

<?xml version="1.0"?>
<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata"
entityID=" https://HayesURL/TIPIDCore/">
<md:SPSSODescriptor AuthnRequestsSigned="false" WantAssertionsSigned="false" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
<md:NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</md:NameIDFormat>
<md:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location=" https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx" index="1" ></md:AssertionConsumerService>
</md:SPSSODescriptor>
</md:EntityDescriptor>

List of Attributes and Claims

<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Given Name"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Surname"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="name"/> => UserName
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="email"/>
<md:RequestedAttribute isRequired="false" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Phone"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Role"/>

NOTE: The "Role" attribute MUST carry/send the user's Role or Group name that you setup earlier. Your IdP cannot send or insert any other value in this attribute or field, such as Group ID or GUID or UID.

Metadata Overrides

  • NameId Format = emailAddress
  • NameId Value = Email

Setup a new, separate endpoint in your SSO IdP to allow TIPWeb-IT Mobile to authenticate the user.

Application Identifier (Entity ID)

https://HayesURL/TIPWebItMobile-Logon/

Reply URL (Assertion Consumer Service URL)

https://HayesURL/TIPWebItMobile-Logon/SAML/SAMLConsumer

Metadata XML

<?xml version="1.0"?>
<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata"
entityID="https://HayesURL/TIPWebITMobile-Logon/">
<md:SPSSODescriptor AuthnRequestsSigned="false" WantAssertionsSigned="false" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
<md:NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</md:NameIDFormat>
<md:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
Location=" https://HayesURL/TIPWebITMobile-Logon/SAML/SAMLConsumer"
index="1" ></md:AssertionConsumerService>
</md:SPSSODescriptor></md:EntityDescriptor>

List of Attributes and Claims

<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Given Name"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Surname"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="name"/> => UserName
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="email"/>
<md:RequestedAttribute isRequired="false" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Phone"/>
<md:RequestedAttribute isRequired="true" Name="urn:oasis:names:tc:SAML:2.0:attrname-format:basic" FriendlyName="Role"/>

NOTE: The "Role" attribute MUST carry/send the user's Role or Group name that you setup earlier. Your IdP cannot send or insert any other value in this attribute or field, such as Group ID or GUID or UID.

Metadata Overrides

  • NameId Format = emailAddress
  • NameId Value = Email

When you have setup the SSO endpoint for Asset Management in your IdP, fill out the required fields in Configuration Document, and send it to ihdmsupport@frontlineed.com.

Sample SAML Request and Response

Request

<samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
ID="_591df756-862f-40ff-8b87-2624fbf38c86">
Version="2.0"
IssueInstant="2021-09-10T15:37:21Z"
ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
AssertionConsumerServiceURL="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx"
Destination="https://__your_SSO_Login_URL__">
<saml:Issuer xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">https://HayesURL/TIPIDCore/</saml:Issuer>
</samlp:AuthnRequest>

Response

The SSO IdP must send back a SAML response to Asset Management that is similar to the following:

<samlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="_93883a0f-fa68-42d7-8444-c61473ea706c" Version="2.0" IssueInstant="2021-09-08T17:49:02.278Z" Destination="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx" InResponseTo="_f9948222-3e11-4592-a0f6-7f15c2812131"><Issuer xmlns="urn:oasis:names:tc:SAML:2.0:assertion">https://sts.windows.net/90e0c2f4-c0eb-4f28-b0f5-8d2c578af4c8/</Issuer><samlp:Status><samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success" /></samlp:Status><Assertion xmlns="urn:oasis:names:tc:SAML:2.0:assertion" ID="_6cf241dc-38c0-4881-9b8b-cd751eda6701" IssueInstant="2021-09-08T17:49:02.278Z" Version="2.0"><Issuer>https://sts.windows.net/90e0c2f4-c0eb-4f28-b0f5-8d2c578af4c8/</Issuer><Signature xmlns="http://www.w3.org/2000/09/xmldsig#"><SignedInfo><CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /><SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256" /><Reference URI="#_6cf241dc-38c0-4881-9b8b-cd751eda6701"><Transforms><Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature" /><Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /></Transforms><DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256" /><DigestValue>...</DigestValue></Reference></SignedInfo><SignatureValue>...</SignatureValue><KeyInfo><X509Data><X509Certificate>...</X509Certificate></X509Data></KeyInfo></Signature><Subject><NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">tipweb_it@DistrictDomainName</NameID><SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer"><SubjectConfirmationData InResponseTo="_f9948222-3e11-4592-a0f6-7f15c2812131" NotOnOrAfter="2021-09-08T18:49:01.997Z" Recipient="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx"/></SubjectConfirmation></Subject><Conditions NotBefore="2021-09-08T17:44:01.997Z" NotOnOrAfter="2021-09-08T18:49:01.997Z"><AudienceRestriction><Audience>https://HayesURL/TIPIDCore/</Audience></AudienceRestriction></Conditions><AttributeStatement><Attribute Name="http://schemas.microsoft.com/identity/claims/displayname"><AttributeValue>Hayes Support</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname"><AttributeValue>Hayes</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname"><AttributeValue>Support</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress"><AttributeValue>tipweb_it@DistrictDomainName</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name"><AttributeValue>tipweb_it@DistrictDomainName</AttributeValue></Attribute><Attribute Name="role"><AttributeValue>TIPWEBIT_ADMINVIEW_ADMIN</AttributeValue></Attribute></AttributeStatement><AuthnStatement AuthnInstant="2021-09-08T17:39:00.607Z" SessionIndex="_6cf241dc-38c0-4881-9b8b-cd751eda6701"><AuthnContext><AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:Password</AuthnContextClassRef></AuthnContext></AuthnStatement></Assertion></samlp:Response>

Setting Up Microsoft Azure AD

To integrate Microsoft Azure AD SSO with Frontline Asset Management, you must have a valid Azure Active Directory Single Sign-On (SSO) solution created by Microsoft.  If you don’t have a Azure AD setup, you can read about it at Azure Active Directory.

Additional Resources

You can obtain further support for setting up Microsoft Azure AD here:

These are the steps that you will need to follow in order to allow Frontline to configure Asset Management to SSO into your Azure instance.

  1. Create Azure User Groups for Asset Management and Mobile SSO
  2. Create an Azure account for Frontline support users
  3. Add an Relying Party Trust (Identifier Entity ID) for each product Asset Management and Mobile
  4. Generate the IdP Metadata File or URL using SAML
  5. Send the Azure account and credentials, and the IdP details to the Frontline team

Steps

Complete the following in Microsoft Azure:

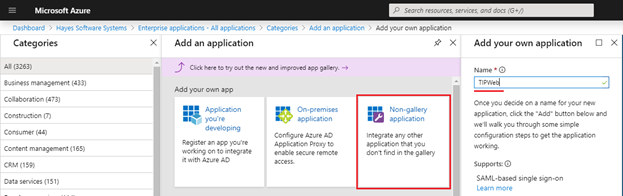

Navigate to: Enterprise Applications > New application


Choose Non-gallery application


Enter a name for the application and choose Add

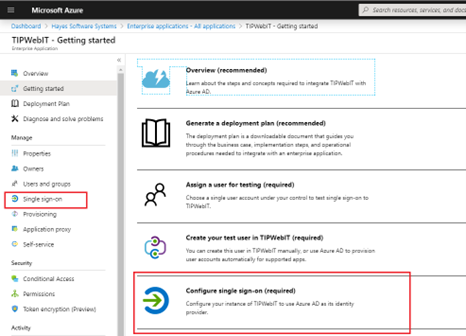

From the Getting Startedpage of the new application, choose Single sign-on from left menu or Configure Single sign-on from the getting started page.

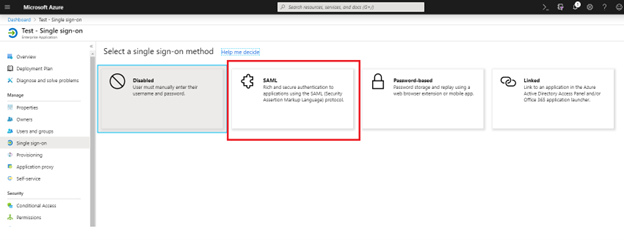

Choose SAML as the single sign-on mode.



In the Single Sign-On Configuration, you will need to modify both the Basic SAML configuration and User Attributes & Claims sections.

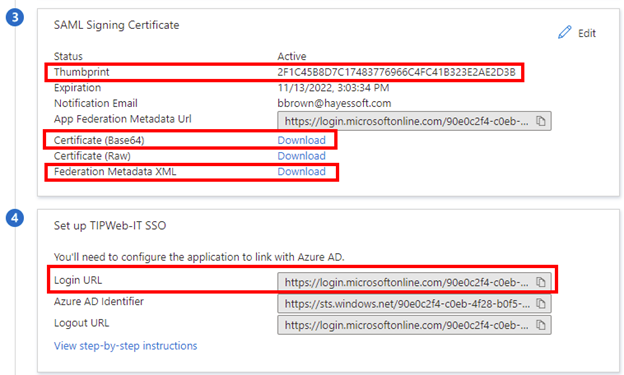

Collect values from the SAML Signing Certificate section and the Set-up section to return to Frontline.

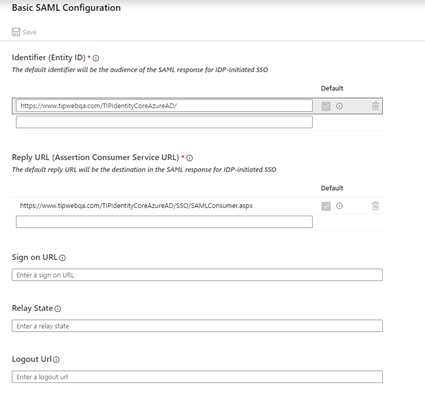

In the Basic SAML Configuration, enter the following values for Identifier and Reply URL and choose Save.

  • Identifier: https://HayesURL/TIPIDCore/
  • Reply URL: https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx


In User Attributes & Claims, leave default claims in place and choose Add a group claim.


In the Group Claims window, fill out the following:

  • Leave the default claims in place
  • Click Add group claim
  • Select All groups or Security groups depending on how your Asset Management Active Directory groups are configured
  • In the Advanced options:
    • Check "Customize the name of the group claim"
    • In the Name field, type "role"
  • Click Save


Information to Submit to Frontline

The following information will be needed by Frontline Software to configure your application to work with Azure AD Single Sign-On:

  • SAML Signing Certificate Thumbprint
  • Federation Metadata XML file
  • Login URL
  • Logout URL


FAQs

Should I name the URLs, file names, projects, and Google settings exactly as documented here?

Yes. Please do not change them as Asset Management depends on the specific names that are requested here.

Where should this information be sent once it is setup?

Please send the information to Frontline support at ihdmsupport@frontlineed.com.

Are there any special permissions that I need to give Frontline Asset Management or its user account?

No. All permissions are default ones, and the user account that’s needed to be created need to be just a regular user, and not a technician or an administrator.

Can I use any other protocol or version instead of SAML 2.0?

No; at this stage, we do not support any other protocol except SAML 2.0.
