Client setup for Single Sign-On endpoint in their IdP using the SAML 2.0 protocol for a Frontline application. Steps and roles to establish for the Asset Management application.

1.  Navigation:
2. Admin View
3. District Settings
4. API and SSO Information

Configuration Checklist

Frontline Configuration

The following items have been setup/created by Frontline in order to kick off the SSO setup:

District Configuration

Overview to Setup SAML 2.0 SSO

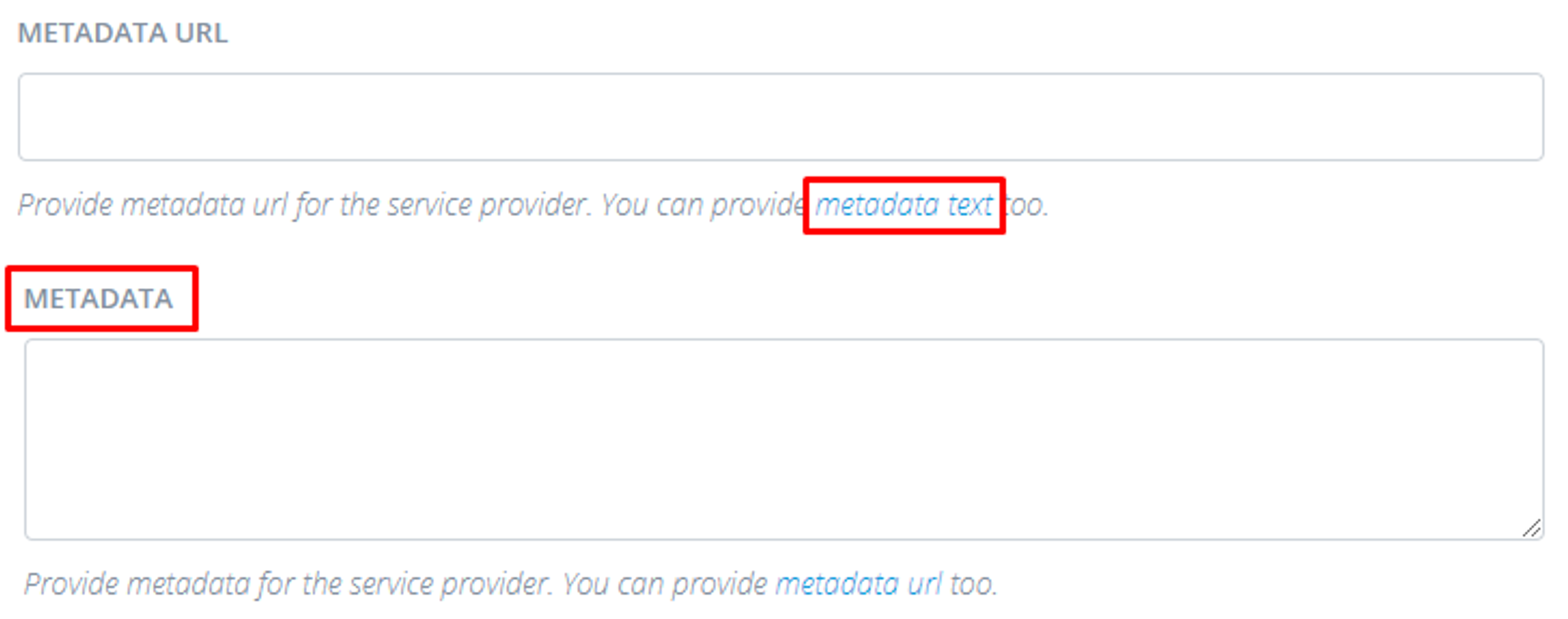

Customers who are asked to setup a Single Sign-On endpoint in their IdP using the SAML 2.0 protocol for a Frontline application are sent an application Identifier (Entity ID), the Reply URL (Assertion Consumer Service), the Metadata XML, the roles to be created in their IdP and the list of attributes, and claims needed by the Frontline Asset Management application.

After setting up the SSO endpoint, customers are asked to the IdP SAML Login URL, the IdP SAML Metadata URL or XML, the SAML Certificate and the certificate thumbprint to Frontline support services. This process is repeated for each Frontline application.

Once the above process is complete, customers will create, setup and send Frontline the test/support account (username/domain and password) in their IdP.

Setup Roles or Groups

Asset Management products must have the following roles (group names) setup in the IdP, and those group names must be sent over as plain text in the "role" attribute/claim the SAML response to the Asset Management application.

Create an Account for Frontline Asset Management

Create an SSO account for Frontline support users in your IdP. Create the following user in your IdP for Frontline Support Staff with a password that does not expire.

• Username: tipweb_it
• Password: <password that does not expire>
• Add to group: TIPWEBIT_ADMINVIEW_ADMIN
• Add an email address such as tipweb_it@DistrictDomainName

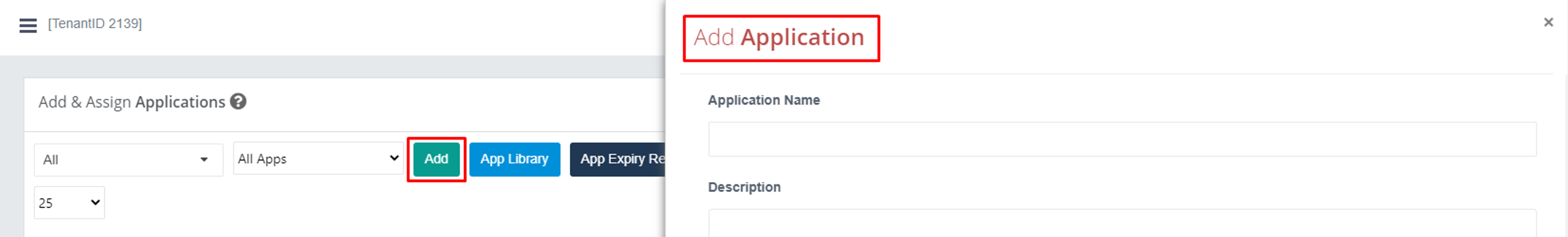

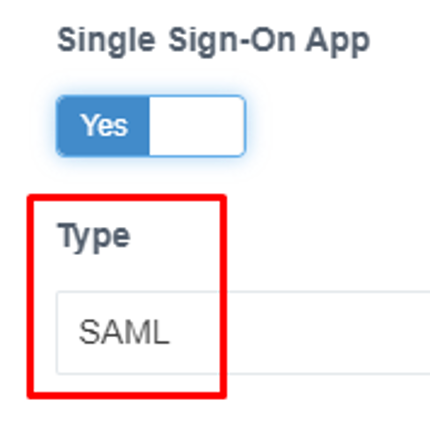

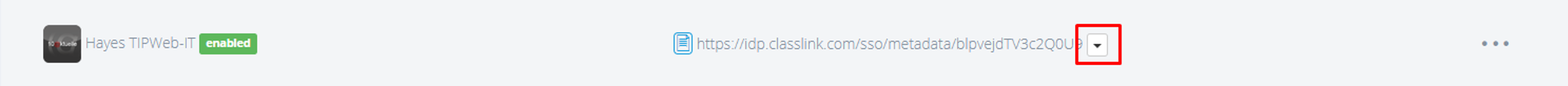

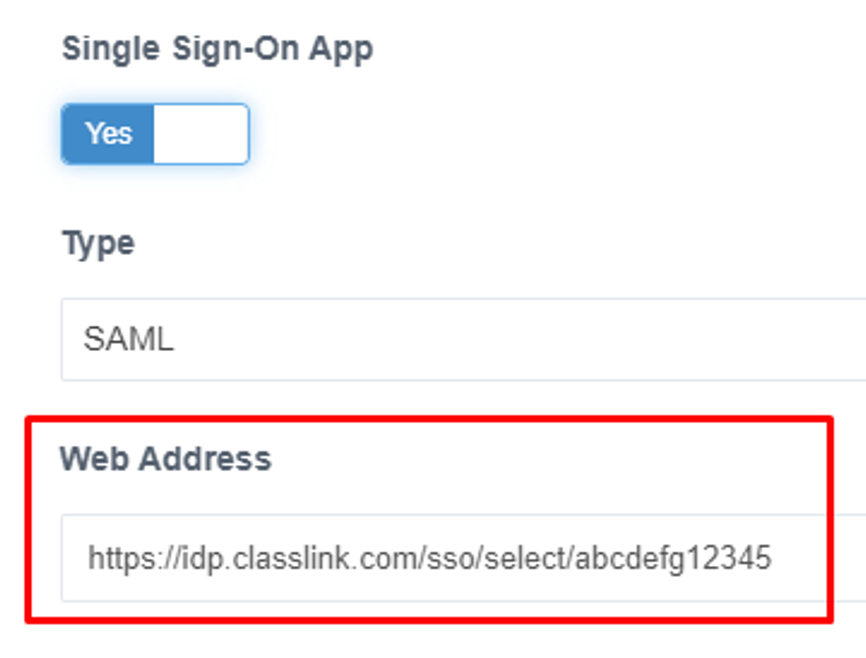

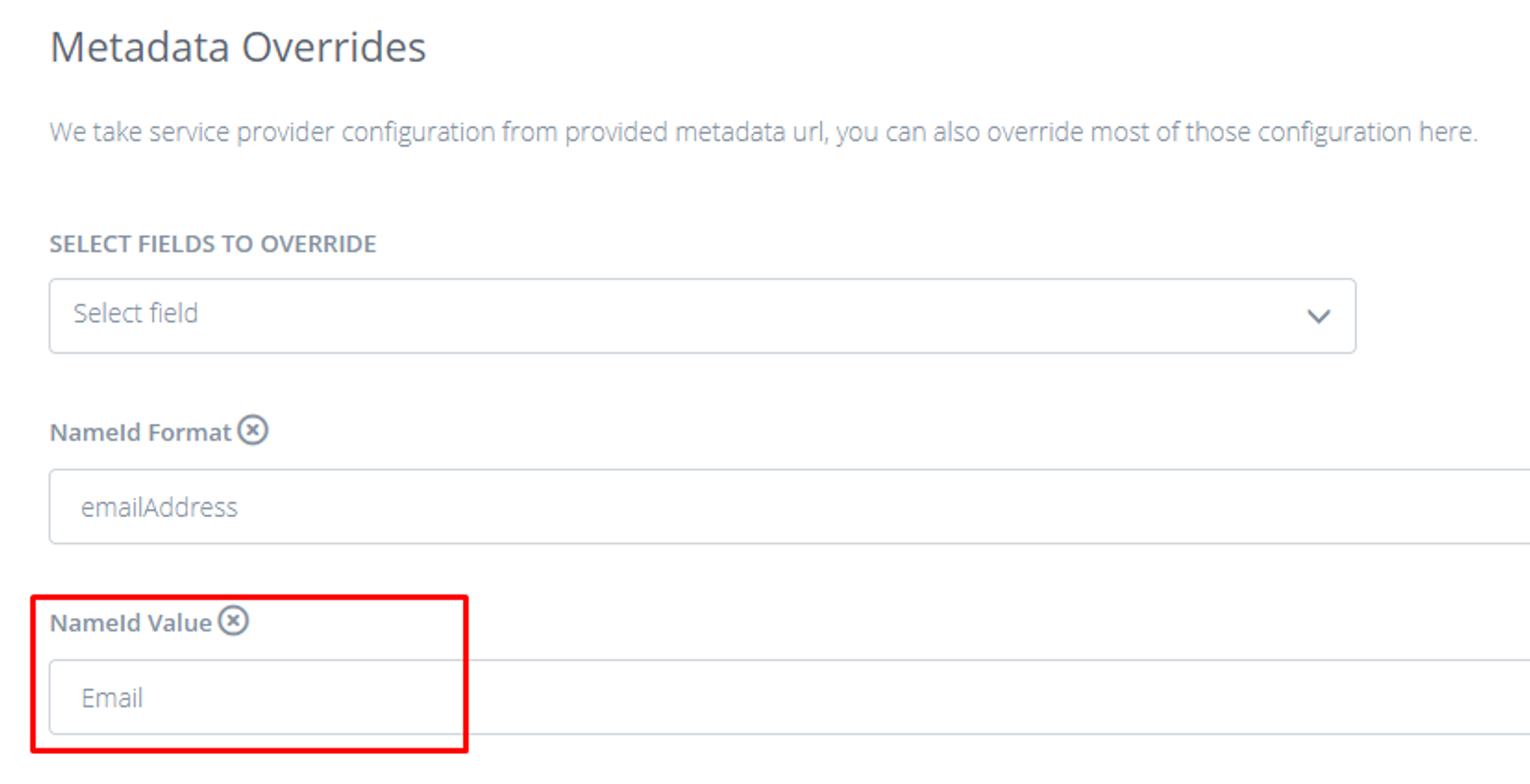

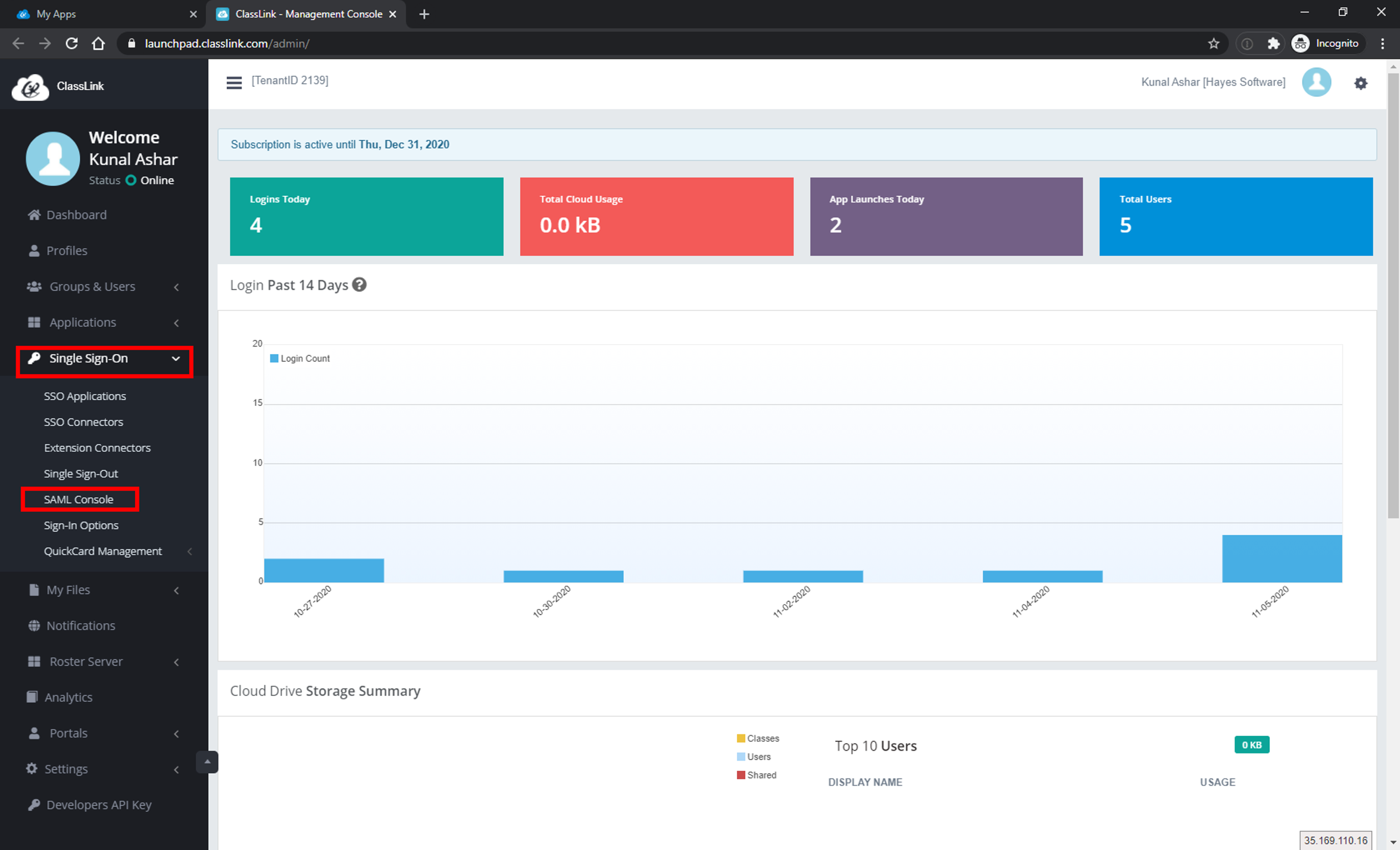

Set Up Endpoints

When you have setup the SSO endpoint for Asset Management in your IdP, fill out the required fields in Configuration Document, and send it to ihdmsupport@frontlineed.com.

Sample SAML Request and Response

Request

<samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
ID="_591df756-862f-40ff-8b87-2624fbf38c86">
Version="2.0"
IssueInstant="2021-09-10T15:37:21Z"
ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
AssertionConsumerServiceURL="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx"
Destination="https://__your_SSO_Login_URL__"><saml:Issuer xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">https://HayesURL/TIPIDCore/</saml:Issuer>
</samlp:AuthnRequest>

Response

The SSO IdP must send back a SAML response to Asset Management that is similar to the following:

<samlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="_93883a0f-fa68-42d7-8444-c61473ea706c" Version="2.0" IssueInstant="2021-09-08T17:49:02.278Z" Destination="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx" InResponseTo="_f9948222-3e11-4592-a0f6-7f15c2812131"><Issuer xmlns="urn:oasis:names:tc:SAML:2.0:assertion">https://sts.windows.net/90e0c2f4-c0eb-4f28-b0f5-8d2c578af4c8/</Issuer><samlp:Status><samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success" /></samlp:Status><Assertion xmlns="urn:oasis:names:tc:SAML:2.0:assertion" ID="_6cf241dc-38c0-4881-9b8b-cd751eda6701" IssueInstant="2021-09-08T17:49:02.278Z" Version="2.0"><Issuer>https://sts.windows.net/90e0c2f4-c0eb-4f28-b0f5-8d2c578af4c8/</Issuer><Signature xmlns="http://www.w3.org/2000/09/xmldsig#"><SignedInfo><CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /><SignatureMethod Algorithm="http://www.w3.org/2001/04/xmldsig-more#rsa-sha256" /><Reference URI="#_6cf241dc-38c0-4881-9b8b-cd751eda6701"><Transforms><Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature" /><Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" /></Transforms><DigestMethod Algorithm="http://www.w3.org/2001/04/xmlenc#sha256" /><DigestValue>...</DigestValue></Reference></SignedInfo><SignatureValue>...</SignatureValue><KeyInfo><X509Data><X509Certificate>...</X509Certificate></X509Data></KeyInfo></Signature><Subject><NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">tipweb_it@DistrictDomainName</NameID><SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer"><SubjectConfirmationData InResponseTo="_f9948222-3e11-4592-a0f6-7f15c2812131" NotOnOrAfter="2021-09-08T18:49:01.997Z" Recipient="https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx"/></SubjectConfirmation></Subject><Conditions NotBefore="2021-09-08T17:44:01.997Z" NotOnOrAfter="2021-09-08T18:49:01.997Z"><AudienceRestriction><Audience>https://HayesURL/TIPIDCore/</Audience></AudienceRestriction></Conditions><AttributeStatement><Attribute Name="http://schemas.microsoft.com/identity/claims/displayname"><AttributeValue>Hayes Support</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname"><AttributeValue>Hayes</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname"><AttributeValue>Support</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress"><AttributeValue>tipweb_it@DistrictDomainName</AttributeValue></Attribute><Attribute Name="http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name"><AttributeValue>tipweb_it@DistrictDomainName</AttributeValue></Attribute><Attribute Name="role"><AttributeValue>TIPWEBIT_ADMINVIEW_ADMIN</AttributeValue></Attribute></AttributeStatement><AuthnStatement AuthnInstant="2021-09-08T17:39:00.607Z" SessionIndex="_6cf241dc-38c0-4881-9b8b-cd751eda6701"><AuthnContext><AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:Password</AuthnContextClassRef></AuthnContext></AuthnStatement></Assertion></samlp:Response>

Setting Up Microsoft Azure AD

To integrate Microsoft Azure AD SSO with Frontline Asset Management, you must have a valid Azure Active Directory Single Sign-On (SSO) solution created by Microsoft.  If you don’t have a Azure AD setup, you can read about it at Azure Active Directory.

These are the steps that you will need to follow in order to allow Frontline to configure Asset Management to SSO into your Azure instance.

1. Create Azure User Groups for Asset Management and Mobile SSO
2. Create an Azure account for Frontline support users
3. Add an Relying Party Trust (Identifier Entity ID) for each product Asset Management and Mobile
4. Generate the IdP Metadata File or URL using SAML
5. Send the Azure account and credentials, and the IdP details to the Frontline team

Steps

Complete the following in Microsoft Azure:

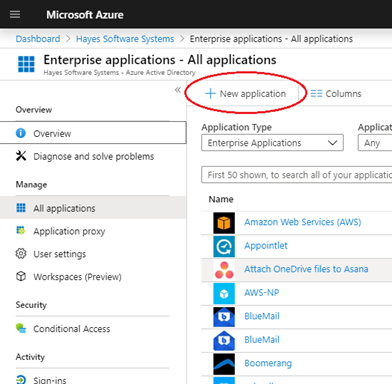

Navigate to: Enterprise Applications > New application

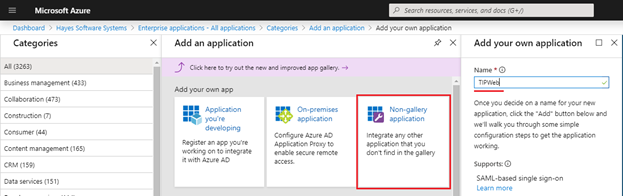

Choose Non-gallery application

Enter a name for the application and choose Add

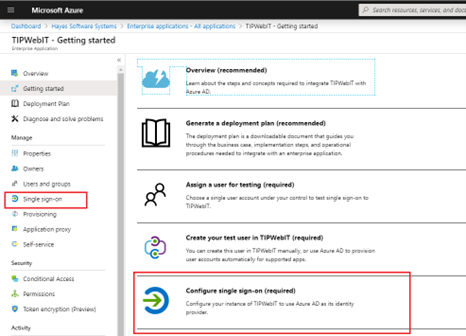

From the Getting Startedpage of the new application, choose Single sign-on from left menu or Configure Single sign-on from the getting started page.

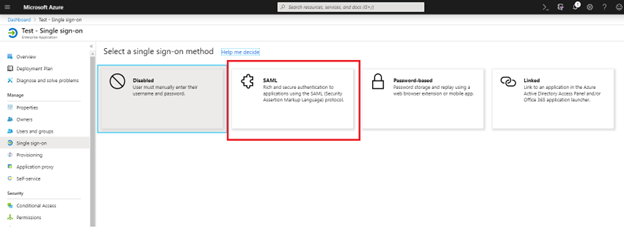

Choose SAML as the single sign-on mode.

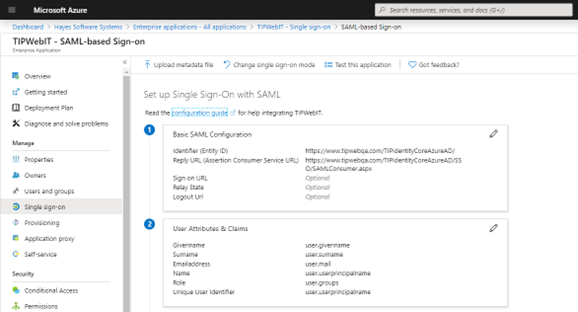

In the Single Sign-On Configuration, you will need to modify both the Basic SAML configuration and User Attributes & Claims sections.

Collect values from the SAML Signing Certificate section and the Set-up section to return to Frontline.

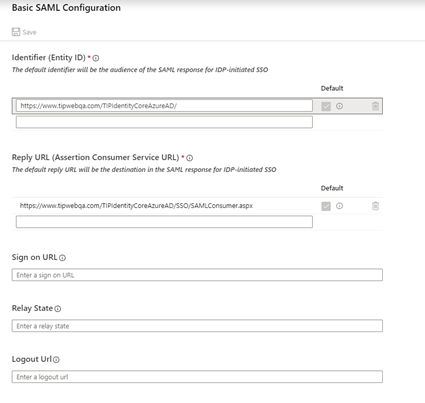

In the Basic SAML Configuration, enter the following values for Identifier and Reply URL and choose Save.

• Identifier: https://HayesURL/TIPIDCore/
• Reply URL: https://HayesURL/TIPIDCore/SSO/SAMLConsumer.aspx

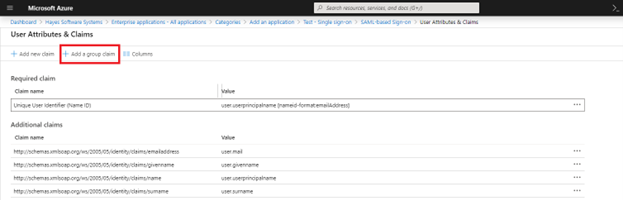

In User Attributes & Claims, leave default claims in place and choose Add a group claim.

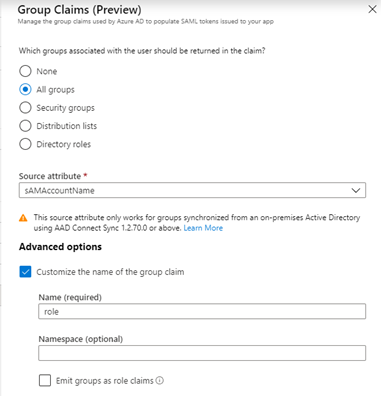

In the Group Claims window, fill out the following:

• Leave the default claims in place
• Click Add group claim
• Select All groups or Security groups depending on how your Asset Management Active Directory groups are configured
• In the Advanced options:
  • Check "Customize the name of the group claim"
  • In the Name field, type "role"
• Click Save

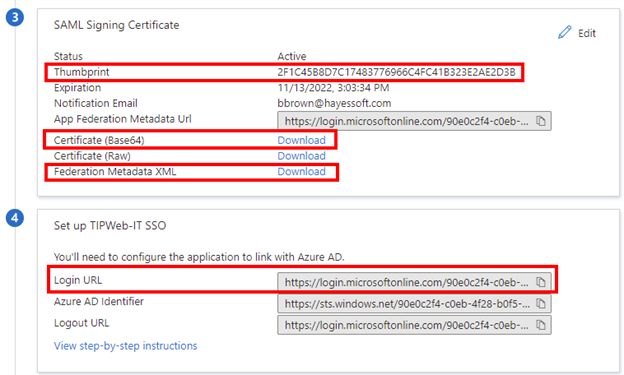

Information to Submit to Frontline

The following information will be needed by Frontline Software to configure your application to work with Azure AD Single Sign-On:

• SAML Signing Certificate Thumbprint
• Federation Metadata XML file

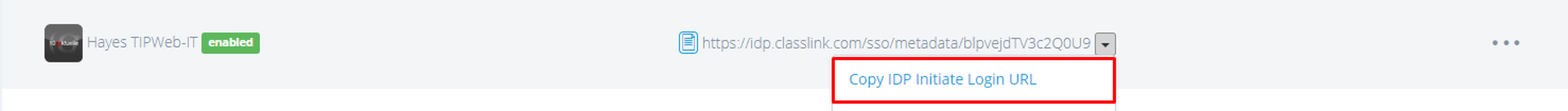

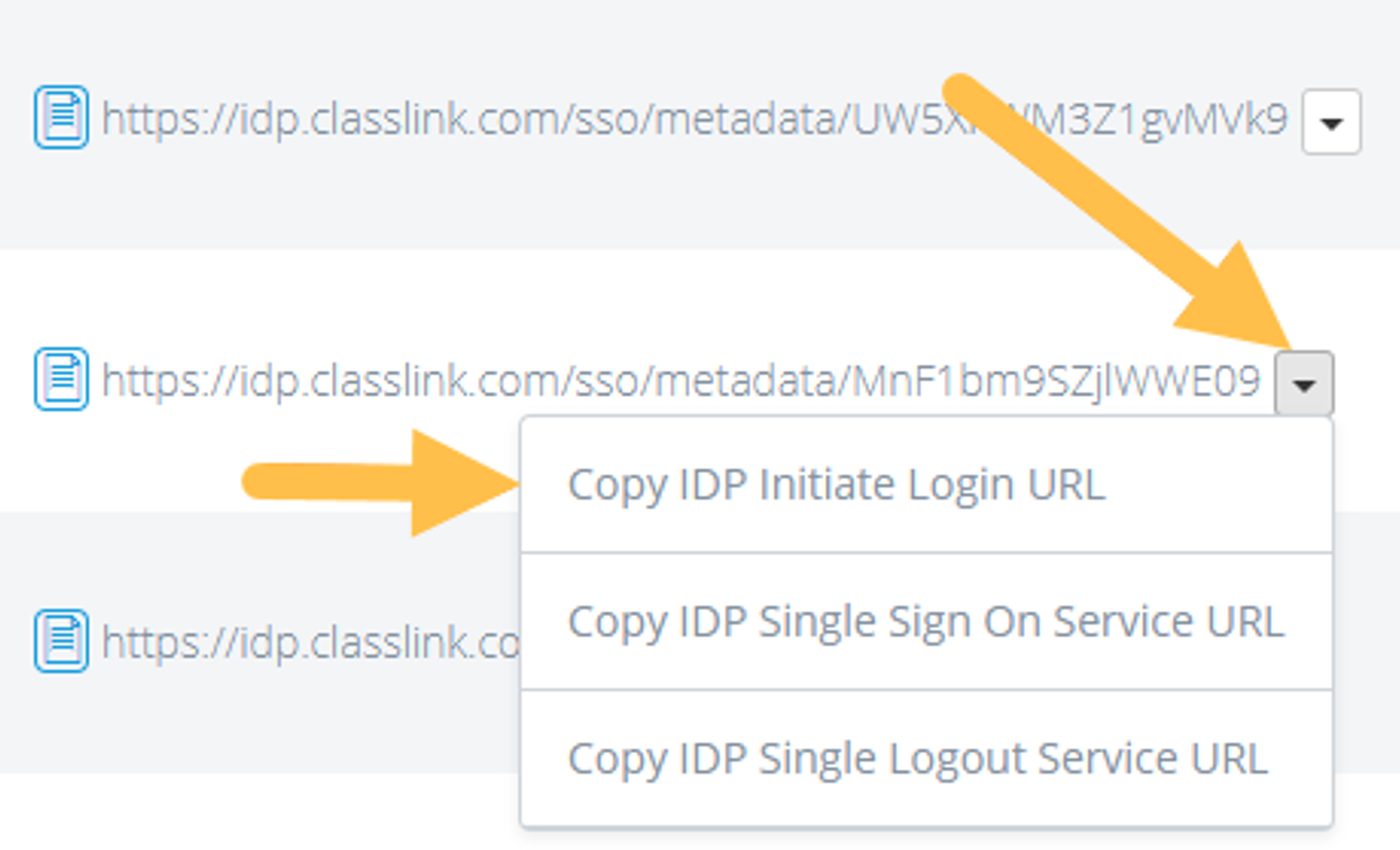

• Login URL
• Logout URL
