13.2 Release Notes for Asset Management (TIPWeb-IT)

Frontline Education is pleased to announce the latest enhancements for Asset Management (formerly TIPWeb-IT), which include low stock alerts and the ability to bulk change the location of assets in statuses of “In Repair,” “In Use,” and “Available” to a different “Room,” “Staff,” or “Student.”

VIDEO

Check out our related video -  Release Review 13.2 (27:22) - as you review this topic.

Details and Notes

Release Date: June 19, 2022

Download 13.2 Release Notes

Release Overview

Highlights include:

  • Parts Management: Low Stock Alerts
  • Location Update: Bulk Import Site, Student/Staff/Room, Status Changes

Parts Management: Low Stock Alerts

As part of our comprehensive inventory management system, we have implemented a powerful feature called "Low Stock Notifications" to assist our admin users in maintaining optimal parts inventory levels. This feature ensures that "Admin Admin" users are notified nightly when the available inventory falls below a specified threshold, enabling them to take immediate action to replenish stock and avoid disruptions in operations.

Navigating to the Parts Catalog

Asset Management users can add and track untagged consumable parts at each site. "Parts Management" will help inventory the untagged parts needed for repairs across your district. Whether those parts are for technology, maintenance, or operations, your teams will have the perfect spot to track your consumables. This feature was released in version 13.1 in March 2023.

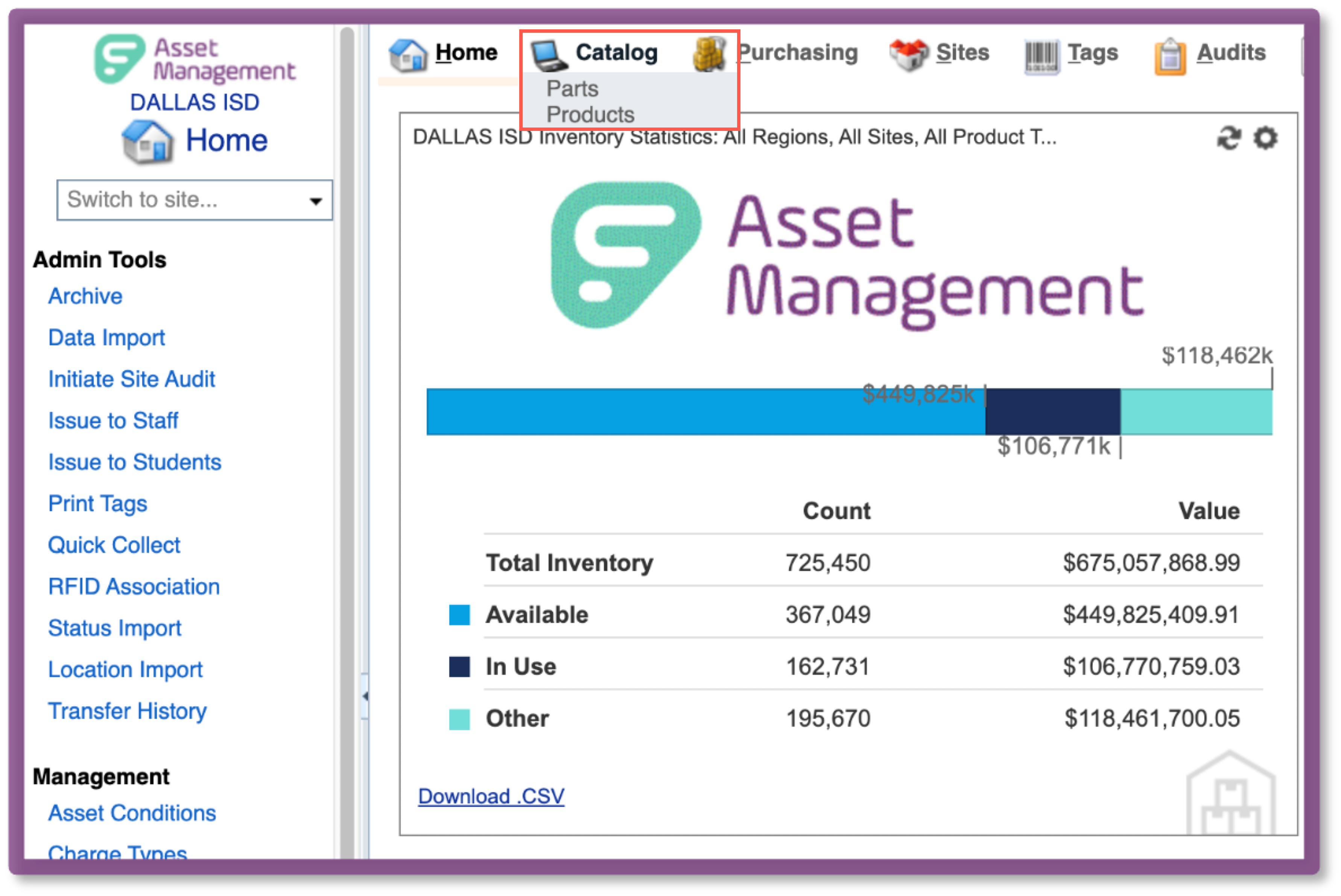

Catalog: Product Catalog Menu

Upon logging in, "Admin" and "Site" users can now click Catalog from the top navigation and see a new drop-down menu displaying “Parts” and “Products.”

All user types will view the "Parts Catalog" by default. Steps to modify permissions are described further in this article.

product

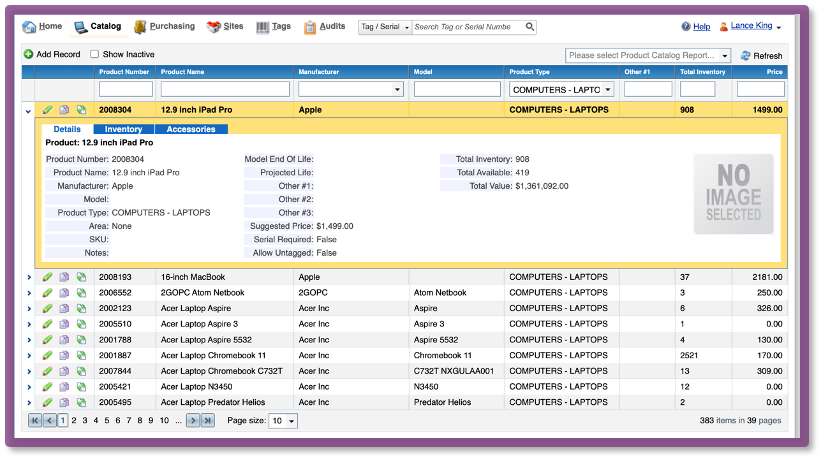

Clicking Products from the "Catalog" menu takes you to the traditional "Product Catalog."

product

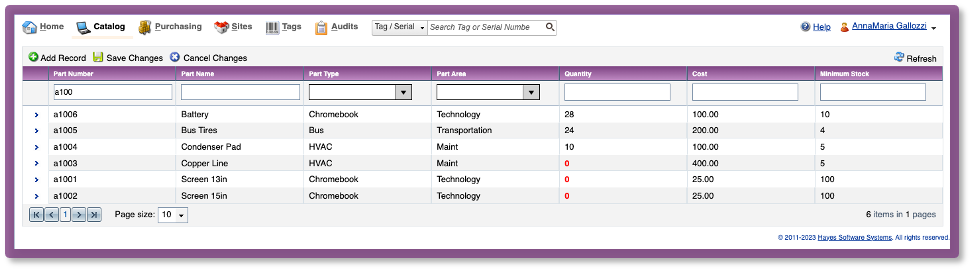

Clicking Parts from the "Catalog" menu takes you to the new "Parts Catalog."

parts

Setting Up Minimum Stock Requirements

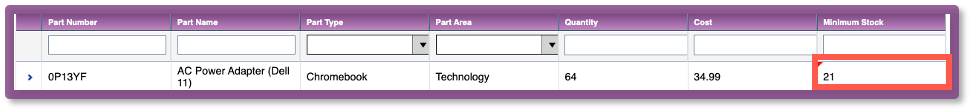

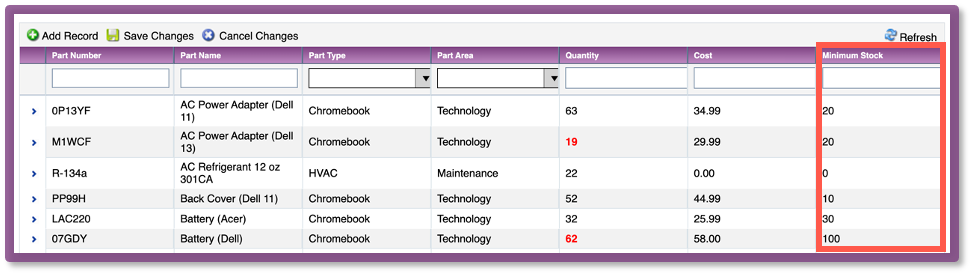

"Admin Admin" users have the ability to set a minimum stock threshold at the district level for each part in the inventory. This threshold represents the minimum quantity of a particular part that should be available before a notification is triggered. Notifications are triggered nightly.

minimum

Minimum Stock

  • Field accepts up to 500,000 in minimum stock
  • Field type is integer
  • Field is not required

The "Quantity" number appears in red when the "Part Quantity" has fallen below the "Minimum Stock" required by the district.

Our system monitors the inventory quantities and compares them against the minimum stock thresholds defined by the admin users. This process is automated and requires no manual intervention.

Reminder: If you see a “red flag” over one of your fields, you will need to save the changes you have made on the grid, otherwise they will be lost.

red

Setting Up Admin Admin Notifications

As an "Admin Admin," navigate to your "Profile Settings" in the top right corner of the Asset Management system by clicking the arrow next to your name. Then click the Profile Settings option.

profile

The "Profile Settings" now have additional “Email Notification Settings.”

By clicking on Send District Low Stock Consolidated Daily Email, the system will send you a nightly email of parts below the minimum tock threshold set forth by the district.

profile

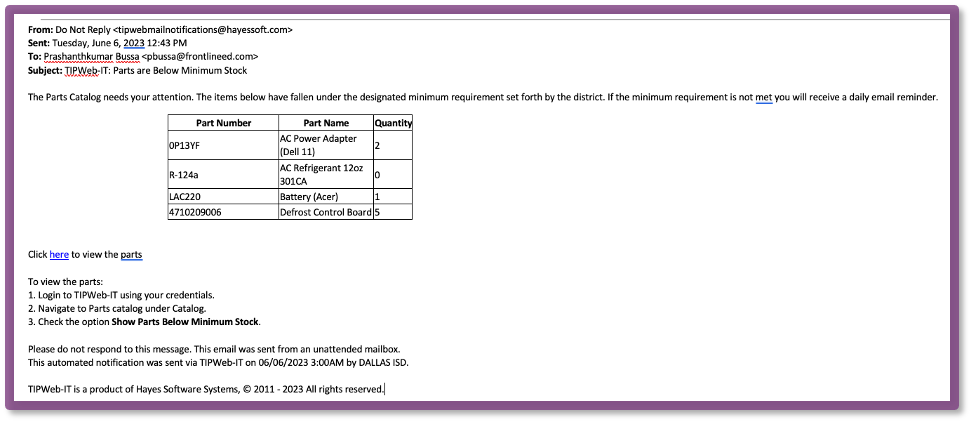

Parts Management Email Notification: Admin Admin

The email notification includes essential details to assist the "Admin" in identifying and addressing low stock. The email includes a list of all parts that have fallen below the threshold set, along with the "Part Number," "Part Name," and "Quantity."

parts

Additionally, the email notification contains a link below the part details that directs the admin user to a dedicated report within the "Parts Management" tab. This report offers a comprehensive overview of the inventory status, highlighting the parts that are below the minimum stock threshold.

parts

Replenishing Low Stock

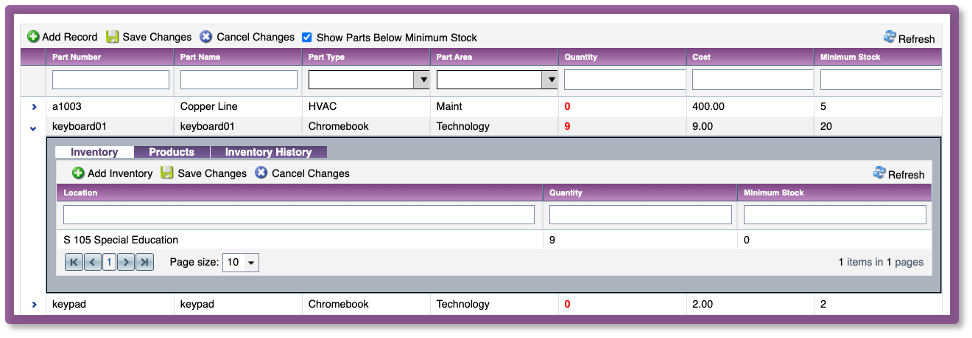

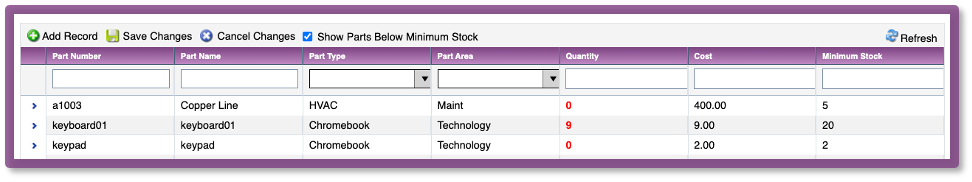

When the "Admin Admin" sees the notification or navigates to “Show Parts Below Minimum Stock,” more inventory can be added to the parts in need by following the steps below:

  1. Click on the caret > to the left of the "Part" to see additional details and the Inventory tab.

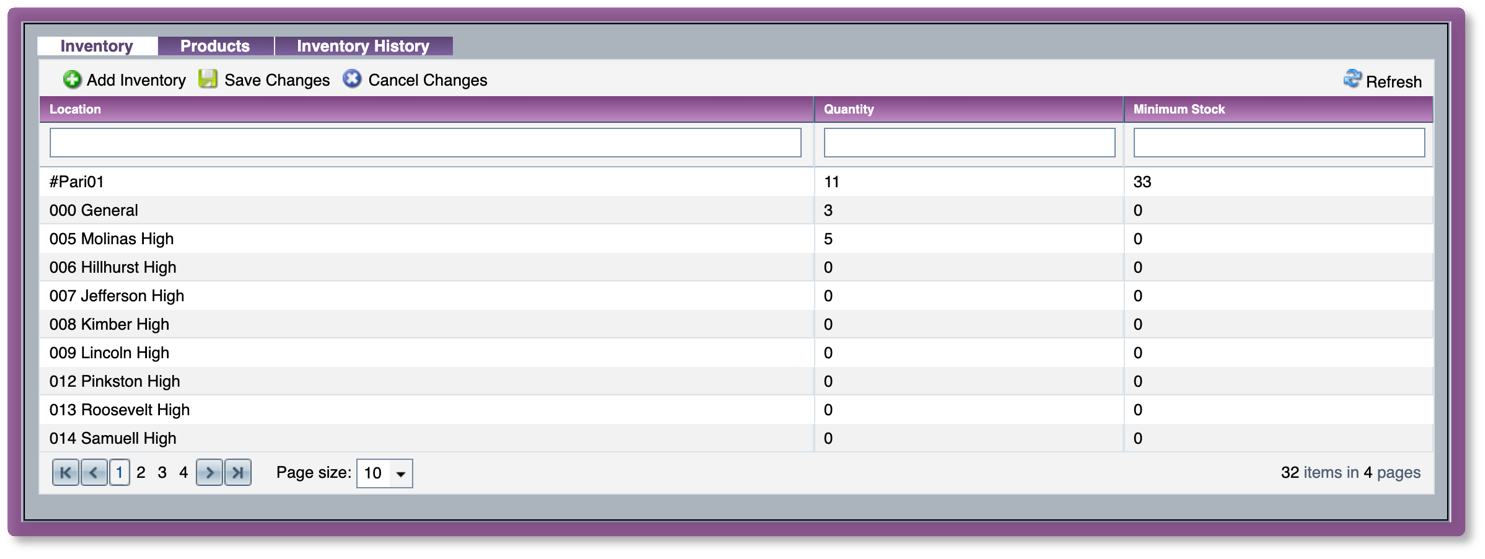

  2. On the Inventory tab, you can add or remove inventory quantity to sites through in-line editing.

replenish

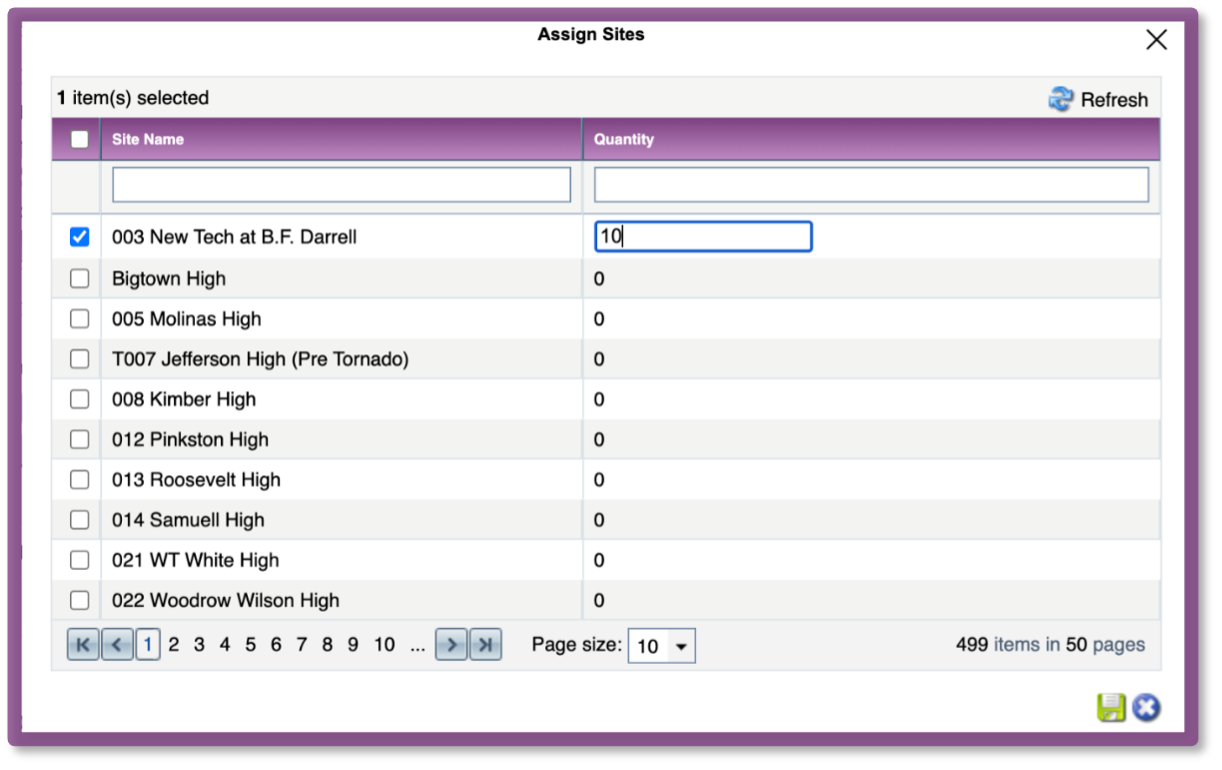

Add Inventory to Sites

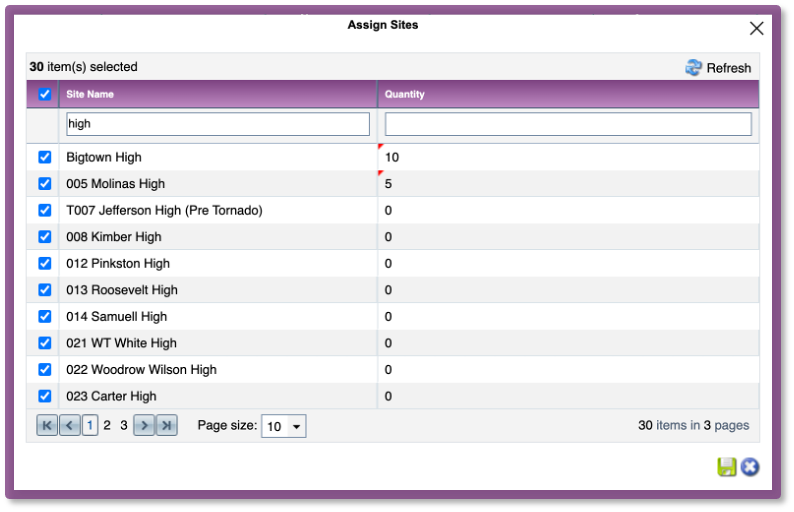

  1. Click Add Inventory to view a list of sites to which to add parts inventory.
  2. Make sure to check the box so the new site inventory quantity is added for the part.
  3. Tab or use your mouse to click into the next site quantity box.
  4. Click Save to associate the part to selected sites.
  5. Click the checkbox at the top left of the grid to select all sites in the system.
  • "Sites" already assigned to a "Part" will no longer display in the "Assign Sites" listing.
  • Once the "Site" is added to the "Inventory" tab, use in-line editing to add or change the Minimum Stock.

assign

  • When performing a "Site Name" search in the grid, clicking the checkbox at the top will only select the sites returned in the search results, allowing you to add site inventory in bulk.

assign

  • As an admin, you can add sites without a parts inventory quantity, allowing your site users to add their quantity later.

assign

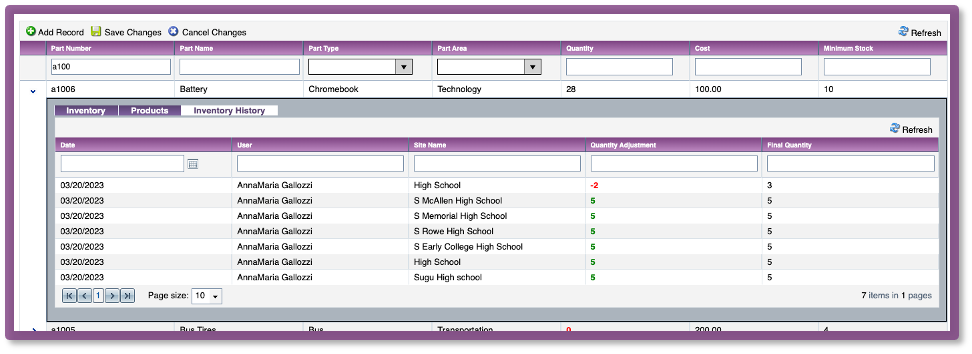

Inventory History Tab

  1. Click on the caret > to the left of the "Part" to see additional details and the Inventory History tab.
  • The "Inventory History" tab will show all adjustments made to the "Parts" inventory quantity: who made them, when they were made, and quantity count changes.
  • The "Inventory History" tab will track the "Date," "User (First and Last Name)," "Site Name," "Quantity Adjustment," and "Final Quantity" of the "Part."
  • Negative adjustments are indicated in red and with a negative (-) sign
  • Positive adjustments are indicated in green.

inventory

Notes:

  • "Parts Management" feature considerations for future releases not yet scheduled:
    • Integrated "Parts Management" with Help Desk
    • Bulk import of "Parts"
    • "Low Stock Notifications" for "Site Admins"
    • "Product Catalog Parts"

Location Import – Import Site, Student/Staff/Room, Status Changes

The ability to bulk change the location of a assets in statuses of “In Repair,” “In Use,” and “Available” to a different “Room,” “Staff,” or “Student” is now available through the "Location Import" feature. "Location Update" is performed through an Excel file import to mass collect or distribute assets.

This feature is only accessible for "Admin Admins" in the system. No other user role will be able to access "Location Import" to collect or distribute assets in bulk.

Navigating to Location Update

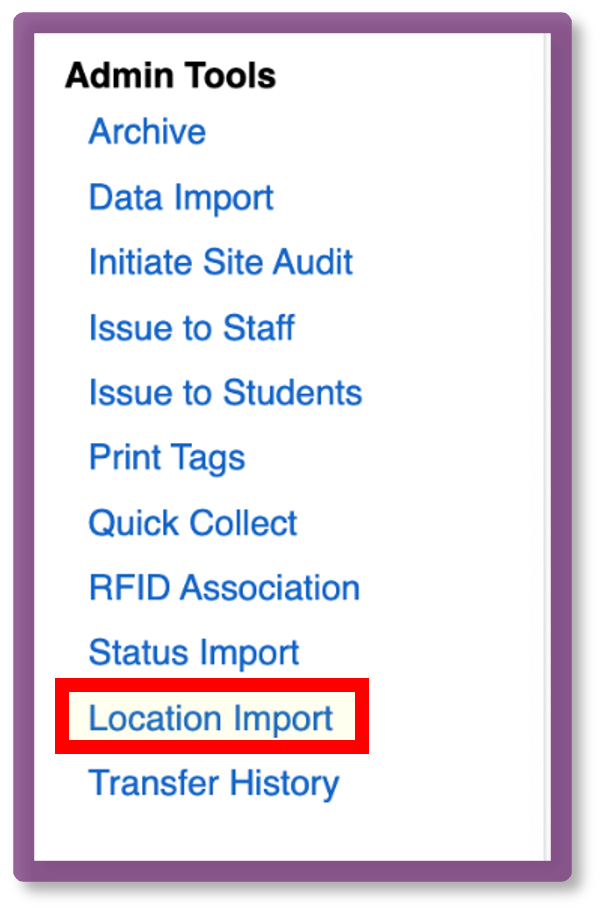

For "Admin Admins," there is a new option on your left navigation panel under "Admin Tools" called “Location Import.” "Location Import" is restricted to only "Admin Admin." No other user roles will see this additional menu option.

location

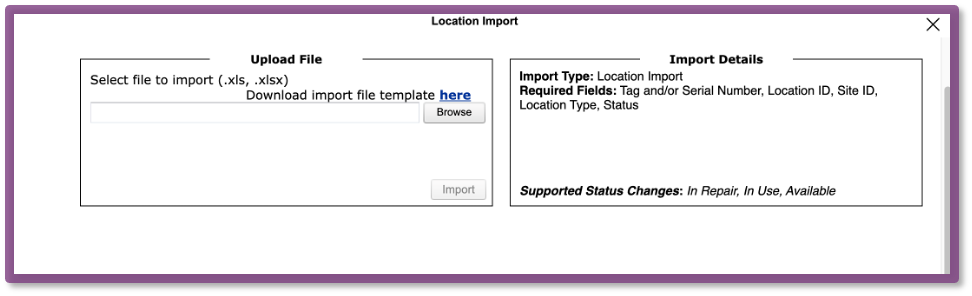

Clicking Location Import will open a modal pop-up to start the import process.

location

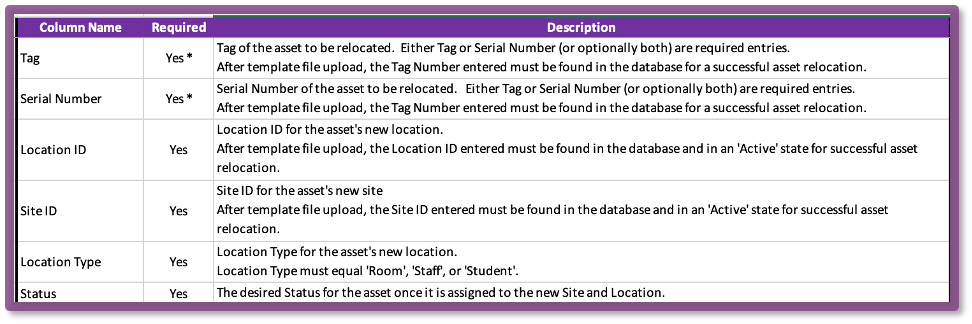

"Import Details" on the left of the modal pop-up describe important details of this feature.

  • Import Type: Will always be set to "Location Import"
  • Required Fields: "Tag," "Serial Number," "Location ID," "Site ID," "Location Type," "Status"

import

  • "Support Status" changes: Will accept changes in status for “In Repair," “In Use,” and “Available.”
    • If a tag is in any of the following statuses or is attempting to be changed to these statuses, they will be blocked: “Lost,” “Stolen.” “Pending Lost,” “Pending Stolen," and all “Transfer”

Preparing your .XLS or .XLSX Import File

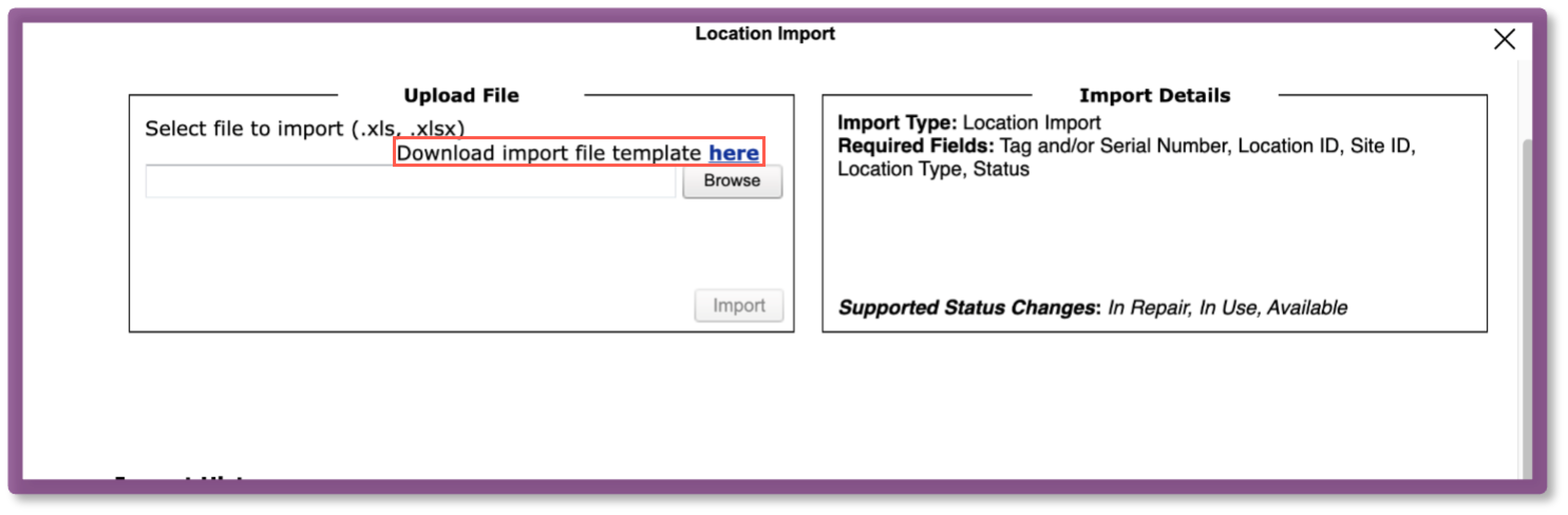

A template file is available from the modal to download and fill with the location change information. Click on the here hyperlink to access the template.

import

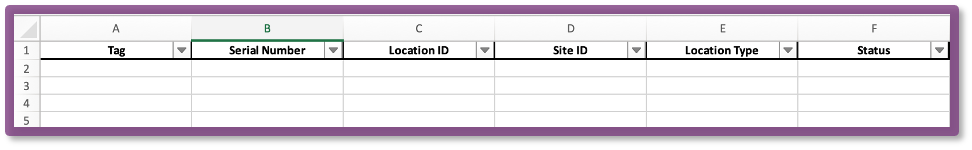

The template file includes columns A-F, and row 1 includes headers of the required fields for "Location Import."

import

Note: If you are using your own spreadsheet, headers need to be in the specific order (shown above) of the template file.

After clicking Browse and selecting your file, press Import to receive certain validations if there is an error in your file before the system can start to process your import.

Validation Type Action

File length > 100 characters

  • Includes file name + file extension
  • e.g., 95 character file length + .xlsx = 100 characters
Error message: "File name maximum length is 100 characters long."
File length <= 100 characters File is processed.
File with only columns and no records Error message: "No data found in the 'SY Location' sheet."
File with columns and no record with format Error message: "No data found in the 'Sheet1' sheet."
File with non-matching column titles Error message: "The columns are not named correctly or are in the wrong order."

File with invalid formats

  • e.g., .txt, .ppt, .docx, .jpg, .pdf, .csv, .png, .doc
Error message: "Invalid file format."

Clicking Import will start the import process and add the file to the "Import History" grid, with the most recent file added at the top.

Note: The import time will vary depending on the number of records, complexity of the updates, and other processes occurring in the database at that time. The file will process in the background so you can continue to work on other tasks in the system.

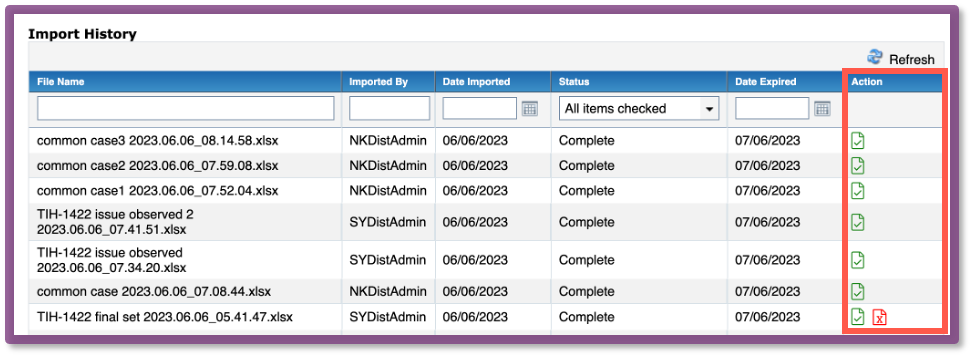

Import History: Error and Success Files

As an "Admin," you have access to detailed error reports and a successful task file. These files provide valuable insights into the outcome of the "Location Import" process, enabling you to address any errors and have a record of successful task completion.

import

Error Report

At the completion of the "Location Import" process, the server will generate an error report in the same format as the import file if any records encountered an issue. This report will contain an additional column, G, “Exception Reason(s)”. "Exception Reasons" are defined in detail later in this article.

Note: Each validation error will be reported individually, following the same format as the data import. If multiple validation errors occur for a single record, each error will be comma-separated in the error message. For example: "Location ID does not exist, Tag does not exist, Site ID is not active."

validation

  • Correction and re-upload: With the error report in hand, you can easily identify the specific errors that occurred during the import. This allows you to make the necessary corrections to the file and repeat the upload process, ensuring accurate and successful bulk location updates. Please remove the last column on the error file before retrying, and make sure your file is in an .xls format.

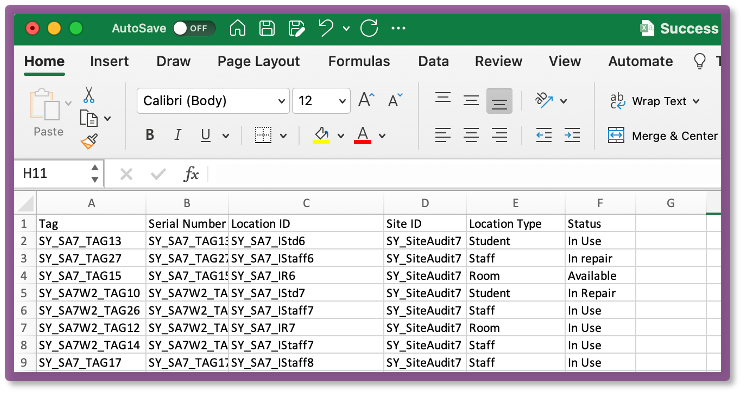

  • Successful file: Clicking the Green Page Icon will open the "Successful Task File." This file serves as confirmation of a successfully completed "Location Update" file import. It provides you with a record of the asset details, serving as a reference for future tracking and verification purposes. If there have been no successful location changes, a success file will not appear, only an error file.

successful

Exception Reasons

Tag and/or Serial (required column in file)

Validation Type File Type Error Message
Blank/missing Error file Tag or Serial must be present.
Invalid
  • Tag is null and serial is invalid
  • Tag is invalid and serial is valid
  • Tag is invalid and serial is invalid
Error file Tag does not exist.
With special character "
  • Error file - Tag
  • Error file - Serial
  • Location Import does not support double quotes for Tag.
  • Location Import does not support double quotes for Serial.
Same "Serial" for two "Tags" in Asset Management
  • Tag is null and serial is valid
Error file Serial must be assigned to an active tag.
"Tag"/"Serial" is archived Error file Tag is archived.
"Tag"/"Serial" with "Component," with and without accessories Error file Tag is a component of Parent Tag (####).

"Tag"/"Serial" with restricted funding source

Error file Tag has restricted funding source.
"Tag"/"Serial" duplicate within file
  • Error file - Tag
  • Error file - Serial
  • Tag (####) is duplicated.
  • Serial (###) Serial is duplicated.
Duplicate "Tag" and "Serial" in different rows of same "Tag" Error tag The asset for this Tag or Serial Number is found more than once.
With valid "Tag"/"Serial"
  • Both tag and serial are valid
  • Tag is valid and serial is null
  • Tag is valid and serial is invalid
  • Tag is invalid and serial is valid
Success file
  • Record is processed.
  • "Status," "Location Type," and "Location ID" is updated as provided in imported sheet.

Location ID (required column in file)

Validation Type File Type Error Message
Blank/missing Error file Location ID is missing from file.
Invalid/Does not exist at any "Site" Error file
  • Room - Room Number (###) does not exist for site (###).
  • Staff - Location type: Staff ID (###) not found.
  • Student – Location type: Student ID (###) not found.
With special character " Error file
  • Room - Location Import does not support double quotes for (Location ID).
  • Staff - Location Import does not support double quotes for (Location ID).
  • Student - Location Import does not support double quotes for L(Location ID).
Inactive – Same "Site"/"Warehouse" Error file
  • Staff ID (###) is not active.
  • Student ID (###) is not active.
  • Room Number (###) is not active.
Inactive – Different "Site" Error file
  • Room Number (###) does not exist for site (###).
  • Staff ID (###) is not active.
  • Student ID (###) is not active.
Inactive – Different "Warehouse" Error file
  • Room Number (###) does not exist for warehouse (###).
  • Staff ID (###) is not active.
"Staff"/"Student" only at Site A, not at Site B Success file
  • Staff/Student from (Site #) is created at (Site #2).
  • Tag imported will be reflected in both Sites A and B -Staff/Student.
  • If Tag imported from (Site #2), tag appears in (Site #) & no longer remains within (Site #2).
  • If Tag imported from (Site #), tag remains within (Site #2)

"Staff"/"Student" common in two Sites, A and B

  • "Staff"/"Student" at both Site A and Site B, "Tag" from Site A or B
Success file Tag from Site A or B is displayed at common Staff/Student present at both Site A and B.

Site ID (required column in file)

Validation Type File Type Error Message
Blank/missing Error file Site ID is missing from file.
Invalid Error file Site ID does not exist.
With special character " Error file Location Import does not support double quotes for Site ID.
Inactive – Site Error file Site ID is not active.
Inactive – Warehouse Error file Warehouse ID is not active.

Location Type (required column in file)

Validation Type File Type Error Message
Blank/missing Error file Location Type is missing from file.
Invalid – Site/Warehouse
  • Error file – Site
  • Error file – Warehouse
  • Location Type is not supported. Supported Location Types are "Room," "Staff," and "Student."
  • Students cannot be assigned to a warehouse.
With special character " Error file Location Import does not support double quotes for Location Type.

Status (required column in file)

Validation Type File Type Error Message
Blank/missing Error file Status is missing from file.
Invalid Error file Tag Status is not supported. Supported Status are "In Use," "Available," and "In Repair."

With any special character

  • Case 1: Available~'"!@#$%^&*()_+{}:"_;',./<>?`[]
  • Case 2: Avail"!@#$%^&*()_+{ab}:"_;',./<>?`le[]
  • Case 3: Availab~'"!@#$%^&*()_+{}:"_;',./<>?`[]lee
  • Case 4: InValidRemove~'"!@#$%^&*()_lll+{}:"_;',./<>?`[]g

1, 2, and 3: Success File

4: Error File

1 and 2: Special characters will be removed first and if status is valid, record is processed

3: Record is processed

4: Tag Status is not supported. Supported Status are "In Use," "Available," and "In Repair."

Not Allowed Status for current location import scope

  • Not allowed status -> Auctioned
  • Not allowed status -> Disposed
  • Not allowed status -> Lost
  • Not allowed status -> Recycled
  • Not allowed status -> Return to Vendor
  • Not allowed status -> Sold
  • Not allowed status -> Stolen
  • Not allowed status -> Surplus
  • Not allowed status -> Used for Parts

Below statuses will never be part of Location import scope

  • Not allowed status -> Pending Transfer
  • Not allowed status -> In Transit
  • Not allowed status -> Pending Lost
  • Not allowed status -> Pending Stolen
Error file Same exception for all: Tag Status is not supported. Supported Status are "In Use," "Available," and "In Repair"; Tag does not exist.

Tag already in not allowed status

  • Tags in status Auctioned.
  • Tags in status Disposed.
  • Tags in status Lost.
  • Tags in status Recycled.
  • Tags in status Return to Vendor.
  • Tags in status Sold.
  • Tags in status Stolen.
  • Tag in status Surplus.
  • Tag in status Used for Parts.
  • Tags in Pending Transfer.
  • Tags in In Transit.
  • Tags in Pending Lost.
  • Tags in Pending Stolen.
Error file
  • Tag is in status of Auctioned.
  • Tag is in status of Disposed.
  • Tag is in status of Lost.
  • Tag is in status of Recycled.
  • Tag is in status of Returned to Vendor.
  • Tag is in status of Sold.
  • Tag is in status of Stolen.
  • Tag is in status of Surplus.
  • Tag is in status of Used for Parts.
  • Tag is in status of Pending Transfer.
  • Tag is in status of In Transit.
  • Tag is in status of Pending Lost.
  • Tag is in status of Pending Stolen.

Tag status is "Available" for "Staff"/"Student"

  • Staff to Student
  • Student to Staff
  • Staff to Staff
  • Student to Student
Error file
  • Tag Status is not supported for Location Type of Staff.
  • Tag Status is not supported for Location Type of Student.

Overall Record Validation

Validation Type File Type Error Message
All columns blank/missing Error file
  • Tag or Serial must be present.
  • Site ID is missing from file.
  • Location ID is missing from file.
  • Location Type is missing from file; Status is missing from file.
Invalid Error file
  • Location Type is not supported. Supported Location Types are "Room," "Staff," and "Student."
  • Tag Status is not supported. Supported Status are "In Use," "Available," and "In Repair."
  • Tag does not exist.
  • Site ID does not exist.
With special character " Error file

Location Import does not support double quotes for Tag.

Location Import does not support double quotes for Serial.

Location Import does not support double quotes for Site ID.

Location Import does not support double quotes for Location ID.

Location Import does not support double quotes for Location Type.

Location Type is not supported. Supported Location Types are "Room," "Staff," and "Student."

Tag Status is not supported. Supported Status are "In Use," "Available," and "In Repair."

Tag does not exist.

Site ID does not exist.

Note: First quotes are removed from the columns and then the exception is displayed within error file.
Duplicate entire record in file Error file Record is duplicated.

Record already exists in database (or) was already imported earlier

i.e., A "Tag" or "Serial" already exists within Asset Management with the same status, location ID, site ID, and location type.

Success file Record is skipped for validation and appears in success file.

Tag and Serial Validations

"Tags" and "Serials" must be linked to a single, active asset. At least one of the "Tag" or "Serial" columns must contain a value, although both can contain values. If "Tag" is null and "Serial" is specified, the row must be marked as an exception if that "Serial" is linked to multiple assets.

Note: Serial numbers for assets are allowed to be duplicated and there is no validation requiring them to be unique. If only the serial number is used in the "Location Import" file and there are multiple matching assets in your data, an error message will appear.

Duplicate Detection

If a "Tag" or "Serial" is present multiple times in the import file, all occurrences of those records will be marked as duplicates. However, if the entire row is identical, only the first occurrence will be retained, and the subsequent fully identical rows will be marked as duplicates.

Parent Tag and Component Tag Handling

When the location of a parent tag is changed, the component tags will be assigned accordingly. However, the location of a component tag cannot be changed in the bulk upload, and the error message will indicate: "Tag is a component of Parent Tag (###)."

Location and Site Validations

The "Location ID" and "Site ID" must be linked to each other in the database and must be active. Additionally, the status specified must be valid for the "Location Type" (e.g., "Room," "Staff," or "Student").

Status Change Error Handling

If the asset's current status is "Pending Transfer," "In Transit," "Pending Lost," or "Pending Stolen," the status change error will display as: "Unable to change status for tag in status of [status name]. Row [Row Number]."

Warehouse Location Handling

The bulk location change feature is not applicable to warehouse containers. Warehouse locations can only be assigned to staff and rooms, not to students. Untagged inventory management is not included in this import process.

Department Tag Assignment

"Admin Admin" users, who have access to all departments and tags, can assign department tags without any restrictions.

Component & Parent Tags

  • Parent Tag: When the location of a parent tag is changed, the system will automatically assign the new location to all associated component tags. This streamlined process eliminates the need for manual adjustments, allowing for efficient management of parent and component tags.
  • Component Tag: In the bulk upload process, the location of a component tag cannot directly be changed. If an attempt is made to change the location of a component tag, an error message will be displayed to the client: "Tag is a component of Parent Tag (###)." This message indicates that the location change should be performed on the parent tag instead.

Restricted Funding Validations

When performing the bulk location import, if a tag has a restricted funding source that prohibits its movement to a particular site, the system will generate an error.

The error message displayed for such case will read: "Tag has restricted funding source."

The process for validating the tags against the funding source and site matches the process for "Quick Transfers."

This validation enhancement helps maintain data accuracy and adherence to funding restrictions while performing bulk location changes. By preventing tags with restricted funding from being moved to incompatible sites, you can ensure compliance and avoid potential complications.

Note: Missing leading zeros will cause an error. When working with Excel files, it is important to note that leading zeros may be dropped by Excel. This behavior is not specific to our software but rather an inherent characteristic of Excel. To ensure the preservation of leading zeros in your "Tag," "Serial," or "ID" fields, we recommend following the steps outlined below:

  • Using Custom Number Format: Excel provides a custom number format feature that allows you to display leading zeros. You can apply this format to the specific cells or columns where leading zeros are required. Microsoft provides detailed instructions on using a custom number format to display leading zeros in Excel, which can be found in their support documentation, "Using a Custom Number Format to Display Leading Zeros."
  • Opening Files with Leading Zeros: If you need to open a file that contains leading zeros, such as a downloaded file from our software, you can follow these steps:
  1. Save the downloaded file in .txt file format.
  2. Open Excel and choose the File menu.
  3. Select Open and navigate to the location where you saved the .txt file.
  4. In the "Open" dialog, select the file and choose the Open button.
  5. The Text Import Wizard will appear. Select the appropriate options, ensuring that you choose Tab as the delimiter if the file is tab delimited.
  6. Click Finish to import the file into Excel. This process will help retain the leading zeros.
  • Please keep in mind that whenever you export data from our software into an Excel or CSV file, the leading zeros may no longer be present due to Excel's default behavior. To preserve the leading zeros, it is crucial to follow the steps outlined above.

Previous Releases

The following are release notes for prior releases.

Version Release Date
  13.1 Release Notes March 28, 2023
  12.4 Release Notes November 1, 2022
  12.3 Release Notes June 28, 2022
  12.2 Release Notes April 19, 2022
  12.1 Release Notes January 25, 2022
  11.4 Release Notes October 5, 2021
